Raspberry Pi Pico H
12 $

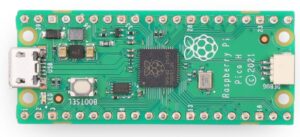

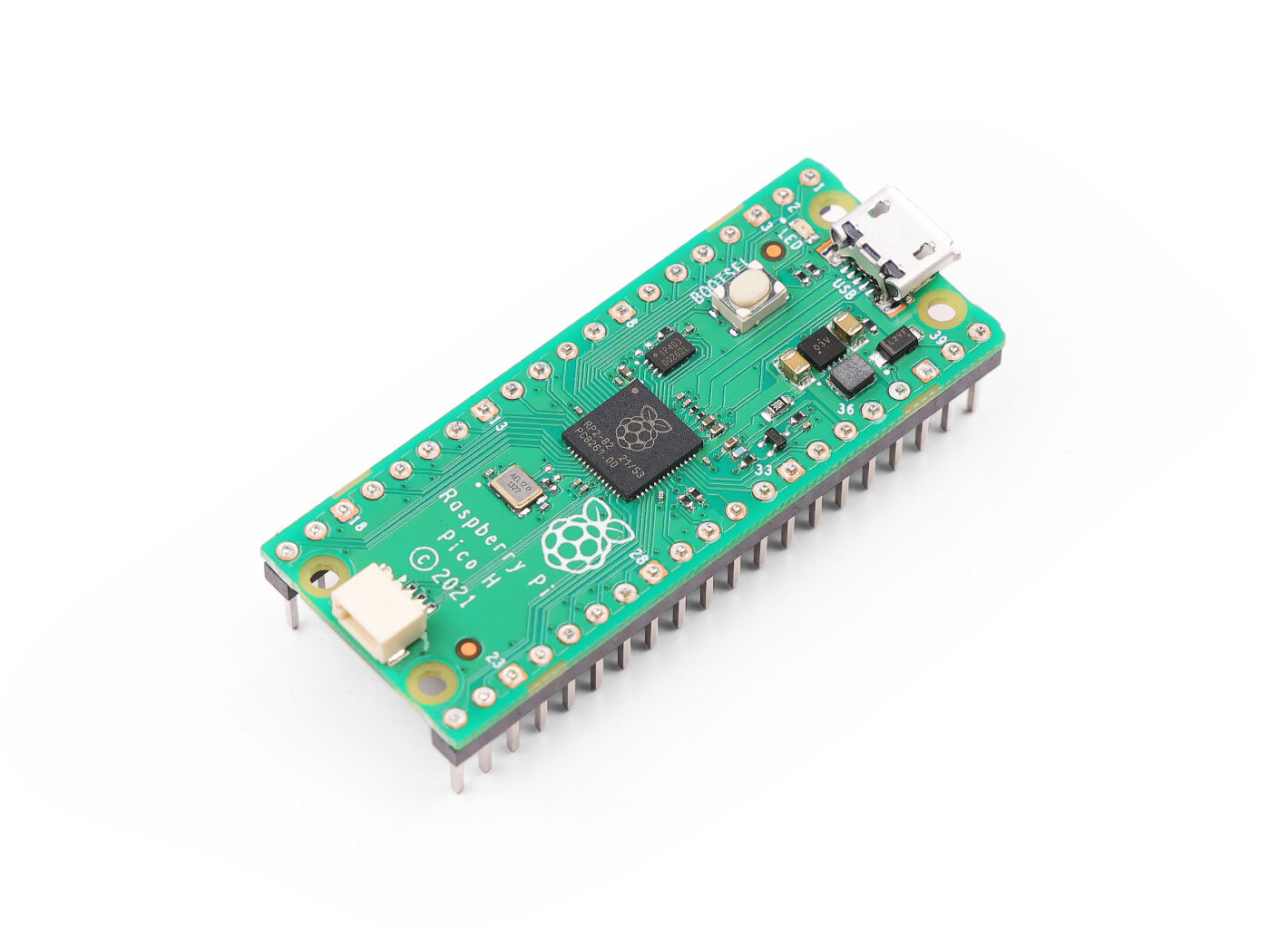

Raspberry Pi Pico H The Raspberry Pi Pico H takes the versatility of the Pico and adds pre-soldered headers and a 3-pin debug connector for easy integration into your projects. Powered by the RP2040 microcontroller, it’s perfect for robotics, IoT, and electronics prototyping, offering simplicity and performance in a compact form.
Description
Feature
Note:

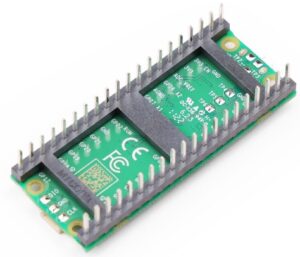

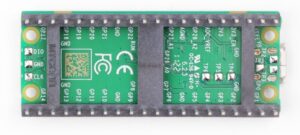

Raspberry Pi Pico H is a version with pre-soldered male headers on all through-holes and a 3-pin debug connector. The pitch remains 2.54mm and is breadboard compatible.
- Fast Development and Debugging: Raspberry Pi Pico H features pre-soldered pins and a 3-pin debug connector.
- High Performance: Powered by RP2040 dual-core ARM Cortex M0+ processor, running up to 133 MHz, included 2MB of onboard Flash memory, mounted 25 multi-function GPIOs
- Easy Development: Drag & drop programming over a USB through MicroPython & Arduino
- Design for Beginners/Children: Provide tons of projects and tutorials, allowing for quick positive programming feedback, getting started well with electronics
- Suitable for Embedded AI: Great Embedded Machine Learning platform by two cores of RP2040 chip and plenty of on-chip RAM, while also supporting TensorFlow Lite
Specification
| Parameter | Description |
| CPU | Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz |
| Storage | 264kB of SRAM, and 2MB of on-board Flash memory |
| GPIO pins | 26 multifunction GPIO pins, including 3 analogue inputs |
| Interface | 2× SPI, 2× I2C, 2× UART, 3× 12-bit ADC, 16× controllable PWM channels |
| Power supply & Downloading interface | USB Type-C interface |

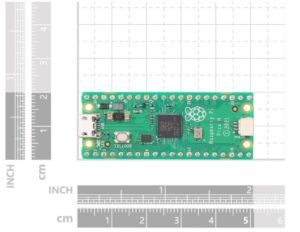

| Dimemsions | 21 mm × 51 mm form factor |
| Operating temperature | -20°C to +85°C (Raspberry Pi Pico and Pico H); -20°C to +70°C (Raspberry Pi Pico W and Pico WH) |
| Supported input power | 1.8–5.5V DC |
| On-chip resources | Accelerated floating point libraries on-chip |
Hardware Overview
Pinout
Application
- Intruder Detection
- Machine Learning Application
- IoT Application
ECCN/HTS
| HSCODE | 8471504090 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8471800000 |
| COO | Japan |
Part List
| Raspberry Pi Pico | x1 |
