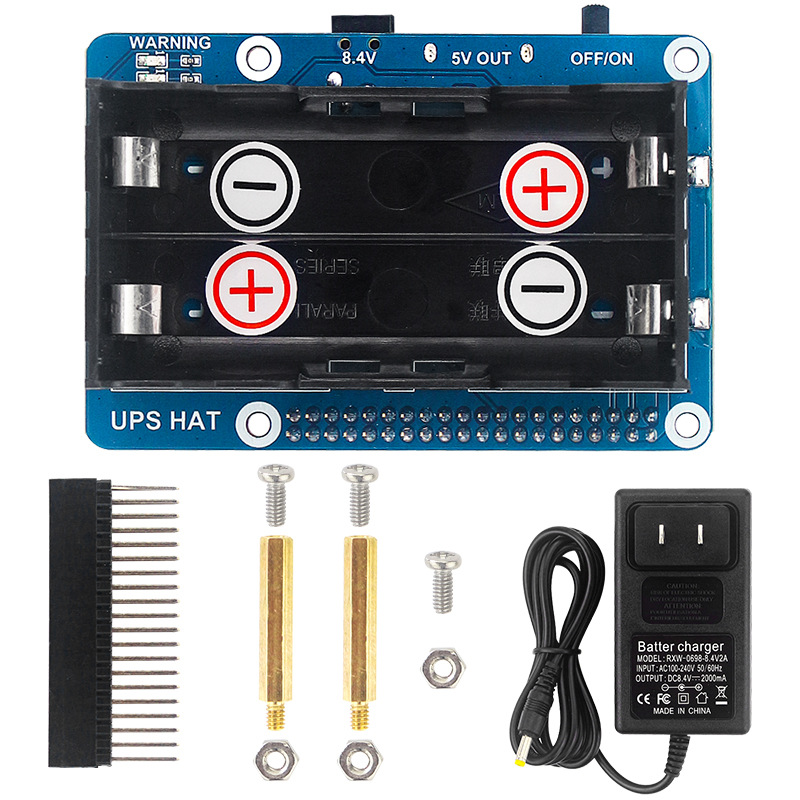

UPS HAT For Raspberry Pi 2-Cell Stable 5V Power Output
35 $
Uninterruptible Power It is able to charge the batteries and provide power output at the same time from external power supply Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble Designed for Raspberry Pi series Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi…
Description
Uninterruptible Power Supply for Raspberry Pi
Power your Pi seamlessly from power connection OR the backup batteries
Charge and Power Output at the Same Time
SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they’re not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Features at a glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard 5V regulator, up to 2.5A continuous output current
- 5V USB output, convenient for powering other boards
- Batteries warning indicators, easy to check if the battery is connected correctly
- Comes with development resources and manual
Specifications
| Output voltage | 5V | Charger | 8.4V 2A |
|---|---|---|---|
| Control bus | I2C | Dimensions | 56 × 85mm |
| Battery support | 18650 Li battery (NOT included) | Mounting hole size | 3.0mm |
Uninterruptible Power
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

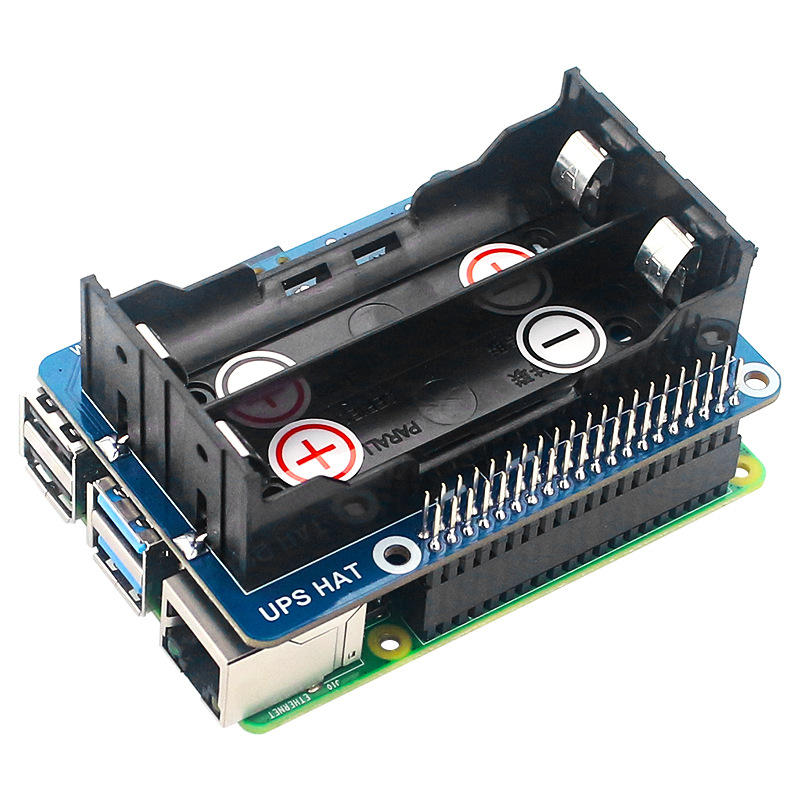

Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
